Chapter 8: Classes And Memory Allocation

Don't hesitate to send in feedback: send an e-mail if you like the C++ Annotations; if you think that important material was omitted; if you find errors or typos in the text or the code examples; or if you just feel like e-mailing. Send your e-mail to Frank B. Brokken.
Please state the document version you're referring to, as found in the title (in this document: 8.3.1) and please state chapter and paragraph name or number you're referring to.
All received mail is processed conscientiously, and received suggestions for improvements will usually have been processed by the time a new version of the Annotations is released. Except for the incidental case I will normally not acknowledge the receipt of suggestions for improvements. Please don't interpret this as me not appreciating your efforts.

In contrast to the set of functions that handle memory allocation in C (i.e., malloc etc.), memory allocation in C++ is handled by the operators new and delete. Important differences between malloc and new are:

The function malloc doesn't `know' what the allocated memory will be used for. E.g., when memory for ints is allocated, the programmer must supply the correct expression using a multiplication by sizeof(int). In contrast, new requires a type to be specified; the sizeof expression is implicitly handled by the compiler. Using new is therefore type safe.
Memory allocated by malloc is initialized by calloc, initializing the allocated characters to a configurable initial value. This is not very useful when objects are available. As operator new knows about the type of the allocated entity it may (and will) call the constructor of an allocated class type object. This constructor may be also supplied with arguments.
All C-allocation functions must be inspected for NULL-returns. This is not required anymore when new is used. In fact, new's behavior when confronted with failing memory allocation is configurable through the use of a new_handler (cf. section 8.2.2).

A comparable relationship exists between free and delete: delete makes sure that when an object is deallocated, its destructor is automatically called.

The automatic calling of constructors and destructors when objects are created and destroyed has consequences which we shall discuss in this chapter. Many problems encountered during C program development are caused by incorrect memory allocation or memory leaks: memory is not allocated, not freed, not initialized, boundaries are overwritten, etc.. C++ does not `magically' solve these problems, but it does provide us with tools to prevent these kinds of problems.

As a consequence of malloc and friends becoming deprecated the very frequently used str... functions, like strdup, that are all malloc based, should be avoided in C++ programs. Instead, the facilities of the string class and operators new and delete should be used instead.

Memory allocation procedures influence the way classes dynamically allocating their own memory should be designed. Therefore, in this chapter these topics are discussed in addition to discussions about operators new and delete. We'll first cover the peculiarities of operators new and delete, followed by a discussion about:

the destructor: the member function that's called when an object ceases to exist;
the assignment operator, allowing us to assign an object to another object of its own class;
the this pointer, allowing explicit references to the object for which a member function was called;
the copy constructor: the constructor creating a copy of an object;
the move constructor: a constructor creating an object from an anonymous temporary object.

8.1: Operators `new' and `delete'

C++ defines two operators to allocate memory and to return it to the ` common pool'. These operators are, respectively new and delete.

Here is a simple example illustrating their use. An int pointer variable points to memory allocated by operator new. This memory is later released by operator delete.

    int *ip = new int;
    delete ip;

Here are some characteristics of operators new and delete:

new and delete are operators and therefore do not require parentheses, as required for functions like malloc and free;
new returns a pointer to the kind of memory that's asked for by its operand (e.g., it returns a pointer to an int);
new uses a type as its operand, which has the important benefit that the correct amount of memory, given the type of the object to be allocated, is made available;
as a consequence, new is a type safe operator as it always returns a pointer to the type that was mentioned as its operand. In addition, the type of the receving pointer must match the type specified with operator new;
new may fail, but this is normally of no concern to the programmer. In particular, the program does not have to test the success of the memory allocation, as is required for malloc and friends. Section 8.2.2 delves into this aspect of new;
delete returns void;
for each call to new a matching delete should eventually be executed, lest a memory leak occurs;
delete can safely operate on a 0-pointer (doing nothing);
otherwise delete must only be used to return memory allocated by new. It should not be used to return memory allocated by malloc and friends.
in C++ malloc and friends are deprecated and should be avoided.

Operator new can be used to allocate primitive types but also to allocate objects. When a primitive type or a struct type without a constructor is allocated the allocated memory is not guaranteed to be initialized to 0, but an initialization expression may be provided:

    int *v1 = new int;          // not guaranteed to be initialized to 0
    int *v1 = new int();        // initialized to 0
    int *v2 = new int(3);       // initialized to 3
    int *v3 = new int(3 * *v2); // initialized to 9

When a class-type object is allocated, the arguments of its constructor (if any) are specified immediately following the type specification in the new expression and the object will be initialized according to the thus specified constructor. For example, to allocate string objects the following statements could be used:

    string *s1 = new string;            // uses the default constructor
    string *s2 = new string();          // same
    string *s3 = new string(4, ' ');    // initializes to 4 blanks.

In addition to using new to allocate memory for a single entity or an array of entities there is also a variant that allocates raw memory: operator new(sizeInBytes). Raw memory is returned as a void *. Here new allocates a block of memory for unspecified purpose. Although raw memory may consist of multiple characters it should not be interpreted as an array of characters. Since raw memory returned by new is returned as a void * its return value can be assigned to a void * variable. More often it is assigned to a char * variable, using a cast. Here is an example:

    char *chPtr = static_cast<char *>(operator new(numberOfBytes));

The use of raw memory is frequently encountered in combination with the placement new operator, discussed in section 8.1.5.

8.1.1: Allocating arrays

Operator new[] is used to allocate arrays. The generic notation new[] is used in the C++ Annotations. Actually, the number of elements to be allocated must be specified between the square brackets and it must, in turn, be prefixed by the type of the entities that must be allocated. Example:

    int *intarr = new int[20];          // allocates 20 ints
    string *stringarr = new string[10]; // allocates 10 strings.

Operator new is a different operator than operator new[]. A consequence of this difference is discussed in the next section (8.1.2).

Arrays allocated by operator new[] are called dynamic arrays. They are constructed during the execution of a program, and their lifetime may exceed the lifetime of the function in which they were created. Dynamically allocated arrays may last for as long as the program runs.

When new[] is used to allocate an array of primitive values or an array of objects, new[] must be specified with a type and an (unsigned) expression between its square brackets. The type and expression together are used by the compiler to determine the required size of the block of memory to make available. When new[] is used the array's elements are stored consecutively in memory. An array index expression may thereafter be used to access the array's individual elements: intarr[0] represents the first int value, immediately followed by intarr[1], and so on until the last element (intarr[19]). With non-class types (primitive types, struct types without constructors) the block of memory returned by operator new[] is not guaranteed to be initialized to 0.

When operator new[] is used to allocate arrays of objects their constructors are automatically used. Consequently new string[20] results in a block of 20 initialized string objects. When allocating arrays of objects the class's default constructor is used to initialize each individual object in turn. A non-default constructor cannot be called, but often it is possible to work around that as discussed in section 13.8.

The expression between brackets of operator new[] represents the number of elements of the array to allocate. The C++ standard allows allocation of 0-sized arrays. The statement new int[0] is correct C++. However, it is also pointless and confusing and should be avoided. It is pointless as it doesn't refer to any element at all, it is confusing as the returned pointer has a useless non-0 value. A pointer intending to point to an array of values should be initialized (like any pointer that isn't yet pointing to memory) to 0, allowing for expressions like if (ptr) ...

Without using operator new[], arrays of variable sizes can also be constructed as local arrays. Such arrays are not dynamic arrays and their lifetimes are restricted to the lifetime of the block in which they were defined.

Once allocated, all arrays have fixed sizes. There is no simple way to enlarge or shrink arrays. C++ has no operator ` renew'. Section 8.1.3 illustrates how to enlarge arrays.

8.1.2: Deleting arrays

Dynamically allocated arrays are deleted using operator delete[]. It expects a pointer to a block of memory, previously allocated by operator new[].

When operator delete[]'s operand is a pointer to an array of objects two actions will be performed:

First, the class's destructor is called for each of the objects in the array. The destructor, as explained later in this chapter, performs all kinds of cleanup operations that are required by the time the object ceases to exist.
Second, the memory pointed at by the pointer is returned to the common pool.

Here is an example showing how to allocate and delete an array of 10 string objects:

    std::string *sp = new std::string[10];
    delete[] sp;

No special action is performed if a dynamically allocated array of primitive typed values is deleted. Following int *it = new int[10] the statement delete[] it simply returns the memory pointed at by it is returned. Realize that, as a pointer is a primitive type, deleting a dynamically allocated array of pointers to objects will not result in the proper destruction of the objects the array's elements point at. So, the following example results in a memory leak:

    string **sp = new string *[5];
    for (size_t idx = 0; idx != 5; ++idx)
        sp[idx] = new string;
    delete[] sp;            // MEMORY LEAK !

In this example the only action performed by delete[] is to return an area the size of five pointers to strings to the common pool.

Here's how the destruction in such cases should be performed:

Call delete for each of the array's elements;
Delete the array itself

Example:

    for (size_t idx = 0; idx != 5; ++idx)
        delete sp[idx];
    delete[] sp;

One of the consequences is of course that by the time the memory is going to be returned not only the pointer must be available but also the number of elements it contains. This can easily be accomplished by storing pointer and number of elements in a simple class and then using an object of that class.

Operator delete[] is a different operator than operator delete. The rule of thumb is: if new[] was used, also use delete[].

8.1.3: Enlarging arrays

Once allocated, all arrays have fixed sizes. There is no simple way to enlarge or shrink arrays. C++ has no renew operator. The basic steps to take when enlarging an array are the following:

Allocate a new block of memory of larger size;
Copy the old array contents to the new array;
Delete the old array;
Let the pointer to the array point to the newly allocated array.

Static and local arrays cannot be resized. Resizing is only possible for dynamically allocated arrays. Example:

    #include <string>
    using namespace std;

    string *enlarge(string *old, unsigned oldsize, unsigned newsize)
    {
        string *tmp = new string[newsize];  // allocate larger array

        for (size_t idx = 0; idx != oldsize; ++idx)
            tmp[idx] = old[idx];            // copy old to tmp

        delete[] old;                       // delete the old array
        return tmp;                         // return new array
    }

    int main()
    {
        string *arr = new string[4];        // initially: array of 4 strings
        arr = enlarge(arr, 4, 6);           // enlarge arr to 6 elements.
    }

The procedure to enlarge shown in the example also has several drawbacks.

The new array requires newsize constructors to be called;
Having initialized the strings in the new array, oldsize of them are immediately reassigned to the corresponding values in the original array;
All the objects in the old arrays are destroyed.

Depending on the context various solutions exist to improve the efficiency of this rather inefficient procedure. An array of pointers could be used (requiring only the pointers to be copied, no destruction, no superfluous initialization) or raw memory in combination with the placement new operator could be used (an array of objects remains available, no destruction, no superfluous construction).

8.1.4: Managing `raw' memory

As we've seen operator new allocates the memory for an object and subsequently initialize that object calling one of its constructors. Likewise, operator delete calls an object's destructor and subsequently returns the memory allocated by operator new to the common pool.

In the next section we'll encounter another use of new, allowing us to initialize objects in so-called raw memory: memory merely consisting of bytes that have been made available either by static or dynamic allocation.

Raw memory is made available by operator new(sizeInBytes). This should not be interpreted as an array of any kind but just a series of memory locations that were dynamically made available. operator new returns a void * so a (static) cast is required to use it as memory of some type. Here are two examples:

                                // room for 5 ints
    int *ip = static_cast<int *>(operator new(5 * sizeof(int)));
                                // room for 5 strings
    string *sp = static_cast<int *>(operator new(5 * sizeof(string)));

As operator new has no concept of data types the size of the intended data type must be specified when allocating raw memory for a certain number of objects of an intended type. The use of operator new therefore somewhat resembles the use of malloc.

The counterpart of operator new is operator delete. Operator new expects a void * (so a pointer to any type can be passed to it). The pointer is interpreted as a pointer to raw memory and is returned to the common pool. Operator delete does not call a destructor. The use of operator delete therefore resembles the use of free. To return the memory pointed at by the abovementioned variables ip and sp operator delete should be used:

                    // delete raw memory allocated by operator new
    operator delete(ip);
    operator delete(sp);

8.1.5: The `placement new' operator

A remarkable form of operator new is called the placement new operator. Before using placement new the <memory> header file must have been included.

With placement new operator new is provided with an existing block of memory in which an object or value is initialized. The block of memory should of course be large enough to contain the object, but apart from that no other requirements exist. It is easy to determine how much memory is used by en entity (object or variable) of type Type: the sizeof operator returns the number of bytes required by an Type entity. Entities may of course dynamically allocate memory for their own use. Dynamically allocated memory, however, is not part of the entity's memory `footprint' but it is always made available externally to the entity itself. This is why sizeof returns the same value when applied to different string objects returning different length and capacity values.

The placement new operator uses the following syntax (using Type to indicate the used data type):

    Type *new(void *memory) Type(arguments);

Here, memory is a block of memory of at least sizeof(Type) bytes and Type(arguments) is any constructor of the class Type.

The placement new operator is useful in situations where classes set aside memory to be used later. This is used, e.g., by std::string to change its capacity. Calling string::reserve may enlarge that capacity without making memory beyond the string's length immediately available. But the object itself may access its additional memory and so when information is added to a string object it can draw memory from its capacity rather than having to perform a reallocation for each single addition of information.

Let's apply that philosophy to a class Strings storing std::string objects. The class defines a char *d_memory accessing the memory holding its d_size string objects as well as d_capacity - d_size reserved memory. Assuming that a default constructor initializes d_capacity to 1, doubling d_capacity whenever an additional string must be stored, the class must support the following essential operations:

doubling its capacity when all its spare memory (e.g., made available by reserve) has been consumed;
adding another string object
properly deleting the installed strings and memory when a Strings object ceases to exist.

To double the capacity new memory is allocated, old memory is copied into the newly allocated memory, and the old memory is deleted. This is implemented by the member void Strings::reserve, assuming d_capacity has already been given its proper value:

void Strings::reserve()
{
    using std::string;

    string *newMemory =
        static_cast<string *>(memcpy(
                                 operator new(d_capacity),
                                 d_memory,
                                 d_size * sizeof(string)
                             ));

    delete d_memory;
    d_memory = newMemory;
}

The member append adds another string object to a Strings object. A (public) member reserve(request) ensures that the String object's capacity is sufficient. Then the placement new operator is used to install the next string into the raw memory's appropriate location:

void Strings::append(std::string const &next)
{
    reserve(d_size + 1);
    new (d_memory + d_size) std::string(next);
    ++d_size;
}

At the end of the String object's lifetime all its dynamically allocated memory must be returned. This is the responsibility of the destructor, as explained in the next section. The destructor's full definition is postponed to that section, but its actions when placement new is involved can be discussed here.

With placement new an interesting situation is encountered. Objects, possibly themselves allocating memory, are installed in memory that may or may not have been allocated dynamically, but that is definitely not completely filled with such objects. So a simple delete[] can't be used, but a delete for each of the objects that are available can't be used either, since that would also delete the memory of the objects themselves, which wasn't dynamically allocated.

This peculiar situation is solved in a peculiar way, only encountered in cases where the placement new operator has been used: memory allocated by objects initialized using placement new is returned by explicitly calling the object's destructor. The destructor is declared as a member having the class preceded by a tilde as its name, not using any arguments. So, std::string's destructor is named ~string. The memory allocated by our class Strings is therefore properly destroyed as follows (in the example assume that using namespace std was specified):

    for (string *sp = d_memory + d_size; sp-- != d_memory; )
        sp->~string();

    operator delete(d_memory);

So far, so good. All is well as long as we're using but one object. What about allocating an array of objects? Initialization is performed as usual. But as with delete, delete[] cannot be called when the buffer was allocated statically. Instead, when multiple objects were initialized using the placement new operator in combination with a statically allocated buffer all the objects' destructors must be called explicitly, as in the following example:

    char buffer[3 * sizeof(string)];
    string *sp = new(buffer) string [3];

    for (size_t idx = 0; idx < 3; ++idx)
        sp[idx].~string();

8.2: The destructor

Comparable to the constructor, classes may define a destructor. This function is the constructor's counterpart in the sense that it is invoked when an object ceases to exist. A destructor is usually called automatically, but that's not always true. The destructors of dynamically allocated objects are not automatically activated, but in addition to that: when a program is interrupted by an exit call, only the destructors of already initialized global objects are called. In that situation destructors of objects defined locally by functions are also not called. This is one (good) reason for avoiding exit in C++ programs.

Destructors obey the following syntactical requirements:

a destructor's name is equal to its class name prefixed by a tilde;
a destructor has no arguments;
a destructor has no return value.

Destructors are declared in their class interfaces. Example:

    class Strings
    {
        public:
            Strings();
            ~Strings();     // the destructor
    };

By convention the constructors are declared first. The destructor is declared next, to be followed by other member functions.

A destructor's main task is to ensure that memory allocated by an object is properly returned when the object ceases to exist. Consider the following interface of the class Strings:

    class Strings
    {
        std::string *d_string;
        size_t d_size;

        public:
            Strings();
            Strings(char const *const *cStrings, size_t n);
            ~Strings();

            std::string const &at(size_t idx) const;
            size_t size() const;
    };

The constructor's task is to initialize the data fields of the object. E.g, its constructors are defined as follows:

    Strings::Strings()
    :
        d_string(0),
        d_size(0)
    {}

    Strings::Strings(char const *const *cStrings, size_t size)
    :
        d_string(new string[size]),
        d_size(size)
    {
        for (size_t idx = 0; idx != size; ++idx)
            d_string[idx] = cStrings[idx];
    }

As objects of the class Strings allocate memory a destructor is clearly required. Destructors may or may not be called automatically. Here are the rules:

A destructor is never called unless its constructor completed successfully. The remaining rules only apply when this rule holds true;
Destructors of local non-static objects are called automatically when the execution flow leaves the block in which they were defined; the destructors of objects defined somewhere in the outer block of a function are called just before the function terminates.
Destructors of static or global objects are called when the program itself terminates.
The destructor of a dynamically allocated object is called by delete using the object's address as its operand;
The destructors of a dynamically allocated array of objects are called by delete[] using the address of the array's first element as its operand;
The destructor of an object initialized by placement new is activated by explicitly calling the object's destructor.

The destructor's task is to ensure that all memory that is dynamically allocated and controlled only by the object itself is returned. The task of the Strings's destructor would therefore be to delete the memory to which d_string points. Its implementation is:

    Strings::~Strings()
    {
        delete[] d_string;
    }

The next example shows Strings at work. In process a Strings store is created, and its data are displayed. It returns a dynamically allocated Strings object to main. A Strings * receives the address of the allocated object and deletes the object again. Another Strings object is then created in a block of memory made available locally in main, and an explicit call to ~Strings is required to return the memory allocated by that object. In the example only once a Strings object is automatically destroyed: the local Strings object defined by process. The other two Strings objects require explicit actions to prevent memory leaks.

    #include "strings.h"
    #include <iostream>

    using namespace std;;

    void display(Strings const &store)
    {
        for (size_t idx = 0; idx != store.size(); ++idx)
            cout << store.at(idx) << '\n';
    }

    Strings *process(char *argv[], int argc)
    {
        Strings store(argv, argc);
        display(store);
        return new Strings(argv, argc);
    }

    int main(int argc, char *argv[])
    {
        Strings *sp = process(argv, argc);
        delete sp;

        char buffer[sizeof(Strings)];
        sp = new (buffer) Strings(argv, argc);
        sp->~Strings();
    }

8.2.1: Object pointers revisited

Operators new and delete are used when an object or variable is allocated. One of the advantages of the operators new and delete over functions like malloc and free is that new and delete call the corresponding object constructors and destructors.

The allocation of an object by operator new is a two-step process. First the memory for the object itself is allocated. Then its constructor is called, initializing the object. Analogously to the construction of an object, the destruction is also a two-step process: first, the destructor of the class is called deleting the memory controlled by the object. Then the memory used by the object itself is freed.

Dynamically allocated arrays of objects can also be handled by new and delete. When allocating an array of objects using operator new the default constructor is called for each object in the array. In cases like this operator delete[] must be used to ensure that the destructor is called for each of the objects in array.

However, the addresses returned by new Type and new Type[size] are of identical types, in both cases a Type *. Consequently it cannot be determined by the type of the pointer whether a pointer to dynamically allocated memory points to a single entity or to an array of entities.

What happens if delete rather than delete[] is used? Consider the following situation, in which the destructor ~Strings is modified so that it tells us that it is called. In a main function an array of two Strings objects is allocated by new, to be deleted by delete []. Next, the same actions are repeated, albeit that the delete operator is called without []:

    #include <iostream>
    #include "strings.h"
    using namespace std;

    Strings::~Strings()
    {
        cout << "Strings destructor called" << '\n';
    }

    int main()
    {
        Strings *a  = new Strings[2];

        cout << "Destruction with []'s" << '\n';
        delete[] a;

        a = new Strings[2];

        cout << "Destruction without []'s" << '\n';
        delete a;
    }
/*
    Generated output:
Destruction with []'s
Strings destructor called
Strings destructor called
Destruction without []'s
Strings destructor called
*/

From the generated output, we see that the destructors of the individual Strings objects are called when delete[] is used, while only the first object's destructor is called if the [] is omitted.

Conversely, if delete[] is called in a situation where delete should have been called the results are unpredicable, and will most likely cause the program to crash. This problematic behavior is caused by the way the run-time system stores information about the size of the allocated array (usually right before the array's first element). If a single object is allocated the array-specific information is not available, but it is nevertheless assumed present by delete[]. This latter operator will interpret bogus values before the array's first element as size information, thus usually causing the program to fail.

If no destructor is defined, a trivial destructor is defined by the compiler. The trivial destructor ensures that the destructors of composed objects (as well as the destructors of base classes if a class is a derived class, cf. chapter 13) are called. This has serious implications: objects allocating memory will cause a memory leak unless precautionary measures are taken (by defining an appropriate destructor). Consider the following program:

    #include <iostream>
    #include "strings.h"
    using namespace std;

    Strings::~Strings()
    {
        cout << "Strings destructor called" << '\n';
    }

    int main()
    {
        Strings **ptr = new Strings* [2];

        ptr[0] = new Strings[2];
        ptr[1] = new Strings[2];

        delete[] ptr;
    }

This program produces no output at all. Why is this? The variable ptr is defined as a pointer to a pointer. The dynamically allocated array therefore consists of pointer variables and pointers are of a primitive type. No destructors exist for primitive typed variables. Consequently only the array itself is returned, and no Strings destructor is called.

Of course, we don't want this, but require the Strings objects pointed to by the elements of ptr to be deleted too. In this case we have two options:

In a for-statement visit all the elements of the ptr array, calling delete for each of the array's elements. This procedure was demonstrated in the previous section.

A wrapper class is designed around a pointer (to, e.g., an object of some class, like Strings). Rather than using a pointer to a pointer to Strings objects a pointer to an array of wrapper-class objects is used. As a result delete[] ptr calls the destructor of each of the wrapper class objects, in turn calling the Strings destructor for their d_strings members. Example:

    #include <iostream>
    using namespace std;

    class Strings   // partially implemented
    {
        public:
            ~Strings();
    };

    inline Strings::~Strings()
    {
        cout << "destructor called\n";
    }

    class Wrapper
    {
        Strings *d_strings;

        public:
            Wrapper();
            ~Wrapper();
    };

    inline Wrapper::Wrapper()
    :
        d_strings(new Strings())
    {}
    inline Wrapper::~Wrapper()
    {
        delete d_strings;
    }

    int main()
    {
        delete[] new Strings *[4]; // memory leak: no destructor called
        cout << "===========\n";
        delete[] new Wrapper[4];       // OK: 4 x destructor called
    }
    /*
        Generated output:
    ===========
    destructor called
    destructor called
    destructor called
    destructor called
    */

8.2.2: The function set_new_handler()

The C++ run-time system ensures that when memory allocation fails an error function is activated. By default this function throws a bad_alloc exception (see section 9.8), terminating the program. Therefore it is not necessary to check the return value of operator new. Operator new's default behavior may be modified in various ways. One way to modify its behavior is to redefine the function that's called when memory allocation fails. Such a function must comply with the following requirements:

it has no parameters;
its return type is void.

A redefined error function might, e.g., print a message and terminate the program. The user-written error function becomes part of the allocation system through the function set_new_handler.

Such an error function is illustrated below ( This implementation applies to the Gnu C/C++ requirements. Actually using the program given in the next example is not advised, as it will probably slow down your computer enormously due to the resulting use of the operating system's swap area.):

    #include <iostream>
    #include <string>
    #include <cstring>

    using namespace std;

    void outOfMemory()
    {
        cout << "Memory exhausted. Program terminates." << '\n';
        exit(1);
    }

    int main()
    {
        long allocated = 0;

        set_new_handler(outOfMemory);       // install error function

        while (true)                        // eat up all memory
        {
            memset(new int [100000], 0, 100000 * sizeof(int));
            allocated += 100000 * sizeof(int);
            cout << "Allocated " << allocated << " bytes\n";
        }
    }

Once the new error function has been installed it is automatically invoked when memory allocation fails, and the program is terminated. Memory allocation may fail in indirectly called code as well, e.g., when constructing or using streams or when strings are duplicated by low-level functions.

So far for the theory. On some systems the ` out of memory' condition may actually never be reached, as the operating system may interfere before the run-time sypport system gets a chance to stop the program (see also this link).

The standard C functions allocating memory (like strdup, malloc, realloc etc.) do not trigger the new handler when memory allocation fails and should be avoided in C++ programs.

8.3: The assignment operator

In C++ struct and class type objects can be directly assigned new values in the same way as this is possible in C. The default action of such an assignment for non-class type data members is a straight byte-by-byte copy from one data member to another. For now we'll use the following simple class Person:

    class Person
    {
        char *d_name;
        char *d_address;
        char *d_phone;

        public:
            Person();
            Person(char const *name, char const *addr, char const *phone);
            ~Person();
        private:
            char *strdupnew(char const *src);   // returns a copy of src.
    };

Person's data members are initialized to zeroes or to copies of the ASCII-Z strings passed to Person's constructor, using some variant of strdup. Its destructor will return the allocated memory again.

Now consider the consequences of using Person objects in the following example:

    void tmpPerson(Person const &person)
    {
        Person tmp;
        tmp = person;
    }

Here's what happens when tmpPerson is called:

it expects a reference to a Person as its parameter person.
it defines a local object tmp, whose data members are initialized to zeroes.
the object referenced by person is copied to tmp: sizeof(Person) number of bytes are copied from person to tmp.

Now a potentially dangerous situation has been created. The actual values in person are pointers, pointing to allocated memory. After the assignment this memory is addressed by two objects: person and tmp.

The potentially dangerous situation develops into an acutely dangerous situation once the function tmpPerson terminates: tmp is destroyed. The destructor of the class Person releases the memory pointed to by the fields d_name, d_address and d_phone: unfortunately, this memory is also pointed at by person....

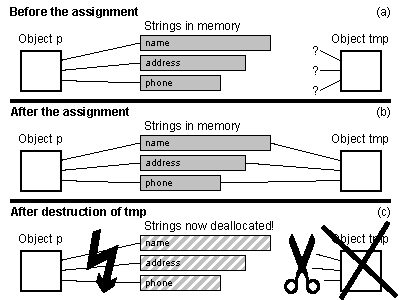

This problematic assignment is illustrated in Figure 4.

Figure 4: Private data and public interface functions of the class Person, using byte-by-byte assignment

Having executed tmpPerson, the object referenced by person now contains pointers to deleted memory.

This is undoubtedly not a desired effect of using a function like tmpPerson. The deleted memory will likely be reused by subsequent allocations. The pointer members of person have effectively become wild pointers, as they don't point to allocated memory anymore. In general it can be concluded that

every class containing pointer data members is a potential candidate for trouble. Fortunately, it is possible to prevent these troubles, as discussed next.

8.3.1: Overloading the assignment operator

Obviously, the right way to assign one Person object to another, is not to copy the contents of the object bytewise. A better way is to make an equivalent object. One having its own allocated memory containing copies of the original strings.

The way to assign a Person object to another is illustrated in Figure 5.

Figure 5: Private data and public interface functions of the class Person, using the `correct' assignment.

There are several ways to assign a Person object to another. One way would be to define a special member function to handle the assignment. The purpose of this member function would be to create a copy of an object having its own name, address and phone strings. Such a member function could be:

    void Person::assign(Person const &other)
    {
            // delete our own previously used memory
        delete[] d_name;
        delete[] d_address;
        delete[] d_phone;

            // copy the other Person's data
        d_name    = strdupnew(other.d_name);
        d_address = strdupnew(other.d_address);
        d_phone   = strdupnew(other.d_phone);
    }

Using assign we could rewrite the offending function tmpPerson:

    void tmpPerson(Person const &person)
    {
        Person tmp;

            // tmp (having its own memory) holds a copy of person
        tmp.assign(person);

            // now it doesn't matter that tmp is destroyed..
    }

This solution is valid, although it only tackles a symptom. It requires the programmer to use a specific member function instead of the assignment operator. The original problem (assignment produces wild pointers) is still not solved. Since it is hard to `strictly adhere to a rule' a way to solve the original problem is of course preferred.

Fortunately a solution exists using operator overloading: the possibility C++ offers to redefine the actions of an operator in a given context. Operator overloading was briefly mentioned earlier, when the operators << and >> were redefined to be used with streams (like cin, cout and cerr), see section 3.1.4.

Overloading the assignment operator is probably the most common form of operator overloading in C++. A word of warning is appropriate, though. The fact that C++ allows operator overloading does not mean that this feature should indiscriminately be used. Here's what you should keep in mind:

operator overloading should be used in situations where an operator has a defined action, but this default action has undesired side effects in a given context. A clear example is the above assignment operator in the context of the class Person.
operator overloading can be used in situations where the operator is commonly applied and no surprise is introduced when it's redefined. An example where operator overloading is appropriately used is found in the class std::string: assiging one string object to another provides the destination string with a copy of the contents of the source string. No surprises here.
in all other cases a member function should be defined instead of redefining an operator.

An operator should simply do what it is designed to do. The phrase that's often encountered in the context of operator overloading is do as the ints do. The way operators behave when applied to ints is what is expected, all other implementations probably cause surprises and confusion. Therefore, overloading the insertion (<<) and extraction (>>) operators in the context of streams is probably ill-chosen: the stream operations have nothing in common with bitwise shift operations.

8.3.1.1: The member 'operator=()'

To add operator overloading to a class, the class interface is simply provided with a (usually public) member function naming the particular operator. That member function is thereupon implemented.

To overload the assignment operator =, a member operator=(Class const &rhs) is added to the class interface. Note that the function name consists of two parts: the keyword operator, followed by the operator itself. When we augment a class interface with a member function operator=, then that operator is redefined for the class, which prevents the default operator from being used. In the previous section the function assign was provided to solve the problems resulting from using the default assignment operator. Rather than using an ordinary member function C++ commonly uses a dedicated operator generalizing the operator's default behavior to the class in which it is defined.

The assign member mentioned before may be redefined as follows (the member operator= presented below is a first, rather unsophisticated, version of the overloaded assignment operator. It will shortly be improved):

    class Person
    {
        public:                             // extension of the class Person
                                            // earlier members are assumed.
            void operator=(Person const &other);
    };

Its implementation could be

    void Person::operator=(Person const &other)
    {
        delete[] d_name;                      // delete old data
        delete[] d_address;
        delete[] d_phone;

        d_name = strdupnew(other.d_name);   // duplicate other's data
        d_address = strdupnew(other.d_address);
        d_phone = strdupnew(other.d_phone);
    }

This member's actions are similar to those of the previously mentioned member assign, but this member is automatically called when the assignment operator = is used. Actually there are two ways to call overloaded operators as shown in the next example:

    void tmpPerson(Person const &person)
    {
        Person tmp;

        tmp = person;
        tmp.operator=(person);  // the same thing
    }

Overloaded operators are seldom called explicitly, but explicit calls must be used (rather than using the plain operator syntax) when you explicitly want to call the overloaded operator from a pointer to an object (it is also possible to dereference the pointer first and then use the plain operator syntax, see the next example):

    void tmpPerson(Person const &person)
    {
        Person *tmp = new Person;

        tmp->operator=(person);
        *tmp = person;          // yes, also possible...

        delete tmp;
    }

8.4: The `this' pointer

A member function of a given class is always called in combination with an object of its class. There is always an implicit `substrate' for the function to act on. C++ defines a keyword, this, to reach this substrate.

The this keyword is a pointer variable that always contains the address of the object for which the member function was called. The this pointer is implicitly declared by each member function (whether public, protected, or private). The this ponter is a constant pointer to an object of the member function's class. For example, the members of the class Person implicitly declare:

    extern Person *const this;

A member function like Person::name could be implemented in two ways: with or without using the this pointer:

    char const *Person::name() const    // implicitly using `this'
    {
        return d_name;
    }

    char const *Person::name() const    // explicitly using `this'
    {
        return this->d_name;
    }

The this pointer is seldom explicitly used, but situations do exist where the this pointer is actually required (cf. chapter 16).

8.4.1: Sequential assignments and this

C++'s syntax allows for sequential assignments, with the assignment operator associating from right to left. In statements like:

    a = b = c;

the expression b = c is evaluated first, and its result in turn is assigned to a.

The implementation of the overloaded assignment operator we've encountered thus far does not permit such constructions, as it returns void.

This imperfection can easily be remedied using the this pointer. The overloaded assignment operator expects a reference to an object of its class. It can also return a reference to an object of its class. This reference can then be used as an argument in sequential assignments.

The overloaded assignment operator commonly returns a reference to the current object (i.e., *this). The next version of the overloaded assignment operator for the class Person thus becomes:

    Person &Person::operator=(Person const &other)
    {
        delete[] d_address;
        delete[] d_name;
        delete[] d_phone;

        d_address = strdupnew(other.d_address);
        d_name = strdupnew(other.d_name);
        d_phone = strdupnew(other.d_phone);

        // return current object as a reference
        return *this;
    }

Overloaded operators may themselves be overloaded. Consider the string class, having overloaded assignment operators

operator=(std::string const
&rhs), operator=(char const *rhs)

, and several more overloaded versions. These additional overloaded versions are there to handle different situations which are, as usual, recognized by their argument types. These overloaded versions all follow the same mold: when necessary dynamically allocated memory controlled by the object is deleted; new values are assigned using the overloaded operator's parameter values and *this is returned.

8.5: The copy constructor: initialization vs. assignment

Consider the class Strings, introduced in section 8.2, once again. As it contains several primitive type data members as well as a pointer to dynamically allocated memory it needs a constructor, a destructor, and an overloaded assignment operator. In fact the class offers two constructors: in addition to the default constructor it offers a constructor expecting a char const *const * and a size_t.

Now consider the following code fragment. The statement references are discussed following the example:

    int main(int argc, char **argv)
    {
        Strings s1(argv, argc);     // (1)
        Strings s2;                 // (2)
        Strings s3(s1);             // (3)

        s2 = s1;                        // (4)
    }

At 1 we see an initialization. The object s1 is initialized using main's parameters: Strings's second constructor is used.
At 2 Strings's default constructor is used, initializing an empty Strings object.
At 3 yet another Strings object is created, using a constructor accepting an existing Strings object. This form of initializations has not yet been discussed. It is called a copy construction and the constructor performing the initialization is called the copy constructor. Copy constructions are also encountered in the following form:
```
    Strings s3 = s1;
```
This is a construction and therefore an initialization. It is not an assignment as an assignment needs a left-hand operand that has already been defined. C++ allows the assignment syntax to be used for constructors having only one parameter. It is somewhat deprecated, though.
At 4 we see a plain assignment.

In the above example three objects were defined, each using a different constructor. The actually used constructor was deduced from the constructor's argument list.

The copy constructor encountered here is new. It does not result in a compilation error even though it hasn't been declared in the class interface. This takes us to the following rule:

A copy constructor is always available, even if it isn't declared in the class's interface.

The copy constructor made available by the compiler is also called the trivial copy constructor. Starting with the C++0x standard it can easily be suppressed (using the = delete idiom). The trivial copy constructor performs a byte-wise copy operation of the existing object's primitive data to the newly created object, calls copy constructors to intialize the object's class data members from their counterparts in the existing object and, when inheritance is used, calls the copy constructors of the base class(es) to initialize the new object's base classes.

Consequently, in the above example the trivial copy constructor is used. As it performs a byte-by-byte copy operation of the object's primitive type data members that is exactly what happens at statement 3. By the time s3 ceases to exist its destructor will delete its array of strings. Unfortunately d_string is of a primitive data type and so it also deletes s1's data. Once again we encounter wild pointers as a result of an object going out of scope.

The remedy is easy: instead of using the trivial copy constructor a copy constructor must explicitly be added to the class's interface and its definition must prevent the wild pointers, comparably to the way this was realized in the overloaded assignment operator. An object's dynamically allocated memory is duplicated, so that it will contain its own allocated data. The copy constructor is simpler than the overloaded assignment operator in that it doesn't have to delete previously allocated memory. Since the object is going to be created no previously allocated memory already exists.

Strings's copy constructor can be implemented as follows:

    Strings::Strings(Strings const &other)
    :
        d_string(new string[other.d_size]),
        d_size(other.d_size)
    {
        for (size_t idx = 0; idx != d_size; ++idx)
            d_string[idx] = other.d_string[idx];
    }

The copy constructor is always called when an object is initialized using another object of its class. Apart from the plain copy construction that we encountered thus far, here are other situations where the copy constructor is used:

it is used when a function defines a class type value parameter rather than a pointer or a reference. The function's argument initializes the function's parameter using the copy constructor. Example:

    void process(Strings store) // no pointer, no reference
    {
        store.at(3) = "modified";   // doesn't modify `outer'
    }

    int main(int argc, char **argv)
    {
        Strings outer(argv, argc);
        process(outer);
    }

it is used when a function defines a class type value return type. Example:

    Strings copy(Strings const &store)
    {
        return store;
    }

Here store is used to initialize copy's return value. The returned Strings object is a temporary, anonymous object that may be immediately used by code calling copy but no assumptions can be made about its lifetime thereafter.

8.5.1: Revising 'operator=()'

The overloaded assignment operator has characteristics also encountered with the copy constructor and the destructor:

The copying of (private) data occurs (1) in the copy constructor and (2) in the overloaded assignment function.
Allocated memory is deleted (1) in the overloaded assignment function and (2) in the destructor.

The copy constructor and the destructor clearly are required. If the overloaded assignment operator also needs to return allocated memory and to assign new values to its data members couldn't the destructor and copy constructor be used for that?

As we've seen in our discussion of the destructor (section 8.2) the destructor can explicitly be called, but that doesn't hold true for the (copy) constructor. But let's briefly summarize what an overloaded assignment operator is supposed to do:

It should delete the dynamically allocated memory controlled by the current object;
It should reassign the current object's data members using a provided existing object of its class.

The second part surely looks like a copy construction. Copy construction becomes even more attractive after realizing that the copy constructor also initializes any reference data members the class might have. Realizing the copy construction part is easy: just define a local object and initialize it using the assignment operator's const reference parameter, like this:

    Strings &operator=(Strings const &other)
    {
        Strings tmp(other);
        // more to follow
        return *this;
    }

The optimization operator=(String tmp) is enticing, but let's postpone that for a little while (at least until section 8.6).

Now that we've done the copying part, what about the deleting part? And isn't there another slight problem as well? After all we copied all right, but not into our intended (current, *this) object.

At this point it's time to introduce swapping. Swapping two variables means that the two variables exchange their values. Many classes (e.g., std::string) offer swap members allowing us to swap two of their objects. The Standard Template Library (STL, cf. chapter 18) offers various functions related to swappping. There is even a swap generic algorithm (cf. section 19.1.61). That latter algorithm, however, begs the current question, as it is customarily implemented using the assignment operator, so it's somewhat problematic to use it when implementing the assignment operator.

As we've seen with the placement new operator objects can be constructed in blocks of memory of sizeof(Class) bytes large. And so, two objects of the same class each occupy sizeof(Class) bytes. To swap these objects we merely have to swap the contents of those sizeof(Class) bytes. This procedure may be applied to classes whose objects may be swapped using a member-by-member swapping operation and can also be used for classes having reference data members. Here is its implementation for a hypothetical class Class, resulting in very fast swapping:

    #include <cstring>

    void Class::swap(Class &other)
    {
        char buffer[sizeof(Class)];
        memcpy(buffer, &other, sizeof(Class));
        memcpy(&other, this,   sizeof(Class));
        memcpy(this,   buffer, sizeof(Class));
    }

Let's add void swap(Strings &other) to the class Strings and complete its operator= implementation:

    Strings &operator=(Strings const &other)
    {
        Strings tmp(other);
        swap(tmp);
        return *this;
    }

This operator= implementation is generic: it can be applied to every class whose objects are directly swappable. How does it work?

The information in the other object is used to initialize a local tmp object. This takes care of the copying part of the assignment operator.
Calling swap ensures that the current object receives its new values.
When operator= terminates its local tmp object ceases to exist and its destructor is called. But by now it contains the data previously owned by the current object, so those data are now returned. Which takes care of the destruction part of the assignment operation.

Nice?

8.6: Moving data (C++0x)

Before the advent of the C++0x standard C++ offered basically two ways to assign the information pointed to by a data member of a temporary object to an lvalue object. Either a copy constructor or reference counting had to be used. The C++0x standard adds move semantics to these two, allowing transfer of the data pointed to by a temporary object to its destination.

Moving information is based on the concept of anonymous (temporary) data. Temporary values are returned by functions like operator-() and opertor+(Type const &lhs, Type const &rhs), and in general by functions returning their results `by value' instead of returning references or pointers.

Anonymous values are always short-lived. When the returned values are primitive types (int, double, etc.) nothing special happens, but if a class-type object is returned by value then its destructor can be called immediately following the function call that produced the value. In any case, the value itself becomes inaccessible immediately after the call. Of course, a temporary return value may be bound to a reference (lvalue or rvalue), but as far as the compiler is concerned the value now has a name, which by itself ends its status as a temporary value.

In this section we concentrate on anonymous temporary values and show how they can be used to improve the efficiency of object construction and assignment. These special construction and assignment methods are known as move construction and move assignment. Classes supporting move operations are called move aware.

Classes allocating their own memory usually benefit from becoming move-aware. But a class does not have to use dynamic memory allocation before it can benefit from move operations. Most classes using composition (or inheritance where the base class uses composition) can benefit from move operations as well.

Movable parameters for class Class take the form Class const &&tmp. The parameter is a rvalue reference, and a rvalue reference only binds to an anonymous temporary value. The compiler is required to call functions offering movable parameters whenever possible. This happens when the class defines functions supporting Class const && parameters and an anonymous temporary value is passed to these functions. Once a temporary value has a name (e.g., binding it to a const & or const &&) it is no longer an anonymous temporary value, and the compiler will call the function defining a Class const & parameter instead.

Note that it is pointless to define a function having an rvalue reference return type. The compiler decides whether or not to use an overloaded member expecting an rvalue reference on the basis of the provided argument. If it is an anonymous temporary it will call the function defining the rvalue reference parameter, if such a function is available.

The compiler, when selecting a function to call applies a fairly simple algorithm, and also considers copy elision. This is covered shortly (section 8.7).

8.6.1: The move constructor (dynamic data) (C++0x)

Our class Strings has, among other members a data member

string
*d_string

. Clearly, Strings should define a copy constructor, a destructor and an overloaded assignment operator.

Now consider the following function loadStrings(std::istream &in) extracting the strings for a Strings object from in. Next, the Strings object filled by loadStrings is returned by value. The function loadStrings returns a temporary object, which can then used to initialize an external Strings object:

    Strings loadStrings(std::istream &in)
    {
        Strings ret;
        // load the strings into 'ret'
        return ret;
    }
    // usage:
    Strings store(loadStrings(cin));

In this example two full copies of a Strings object are required:

initializing loadString's value return type from its local Strings ret object;
initializing store from loadString's return value

We can improve the above procedure by defining a move constructor. Here is the declaration of the Strings class move constructor:

    Strings(Strings const &&tmp);

Move constructors of classes using dynamic memory allocation are allowed to assign the values of pointer data members to their own pointer data members without requiring them to make a copy of the source's data. Next, the temporary's pointer value is set to zero to prevent its destructor from destroying data now owned by the just constructed object. The move constructor has grabbed or stolen the data from the temporary object. This is OK as the temporary object cannot be referred to again (as it is anonymous, it cannot be accessed by other code) and the temporary objects will cease to exist shortly after the constructor's call. Here is the implementation of Strings move constructor:

    Strings::Strings(Strings const &&tmp)
    :
        d_memory(tmp.d_memory),
        d_size(tmp.d_size),
        d_capacity(tmp.d_capacity)
    {
        const_cast<Strings &>(tmp.d_memory) = 0;
    }

8.6.2: The move constructor (composition) (C++0x)

Classes not using pointer members pointing to memory controlled by its objects (and not having base classes doing so, see chapter 13) may also benefit from overloaded members expecting rvalue references. The class will benefit from move operations when one or more of the composed data members themselves support move operations.

Move operations cannot be implemented if the class type of a composed data member does not support moving or copying. Currently, stream classes fall into this category.

An example of a move-aware class is the class std:string. A class Person could use composition by defining std::string d_name and std::string d_address. Its move constructor would then have the following prototype:

    Person(Person const &&tmp);

However, the following implementation of this move constructor is incorrect:

    Person::Person(Person const &&tmp)
    :
        d_name(tmp.d_name),
        d_address(tmp.d_address)
    {}

It is incorrect as it will call string's copy constructors rather than string's move constructors. If you're wondering why this happens then remember that move operations are only performed for anonymous objects. To the compiler anything having a name isn't anonymous. And so, by implication, having available a rvalue reference does not mean that we're referring to an anonymous object. But we know that the move constructor is only called for anonymous arguments. To use the corresponding string move operations we have to inform the compiler that we're talking about anonymous data members as well. For this a cast could be used (e.g., const_cast<Person &>(tmp)), but the C++-0x standard provides the function std::move to anonymize a named object. The correct implementation of Person's move construction is, therefore:

    Person::Person(Person const &&tmp)
    :
        d_name( std::move(tmp.d_name) ),
        d_address( std::move(tmp.d_address) )
    {}

The function std::move is (indirectly) declared by many header files. If no header is already declaring std::move then include utility.

When a class using composition not only contains class type data members but also other types of data (pointers, references, primitive data types), then these other data types can be initialized as usual. Primitive data type members can simply be copied; references can be initialized as usual en pointers may use move operations as discussed in the previous section.

The compiler will not call move operations for variables having names. Let's consider the implications of this by looking at the next example, assuming Class offers a move constructor and a copy constructor:

    Class factory();

    void fun(Class const &other);   // a
    void fun(Class &&tmp);          // b

    void callee(Class &&tmp);
    {
        fun(tmp);                   // 1
    }

    int main()
    {
        callee(factory());
    }

At 1 function a is called. At first sight this might be surprising, but fun's argument is not an anonymous temporary object but a named temporary object.

Realizing that fun(tmp) might be called twice the compiler's choice is understandable. If tmp's data would have been grabbed at the first call, the second call would receive tmp without any data. But at the last call we might know that tmp is never used again and so we might like to ensure that fun(Class &&) is called. For this, once again, std::move is used:

    fun(std::move(tmp));            // last call!

8.6.3: Move-assignment (C++0x)

In addition to the overloaded assignment operator a move assignment operator could be implemented for classes supporting move operations. In this case, if the class supports swapping the implementation is really simple. No copy construction is required and the move assignment operator can simply be implemented like this:

    Class &operator=(Class const &&tmp)
    {
        swap(const_cast<Class &>(tmp));
        return *this;
    }

If swapping is not supported then the assignment can be performed for each of the data members in turn, using std::move as shown in the previous section with a class Person. Here is an example showing how to do this with that class Person:

    Person &operator=(Person const &&tmp)
    {
        d_name = std::move(tmp.d_name);
        d_address = std::move(tmp.d_address);
        return *this;
    }

8.6.4: Moving and the destructor (C++0x)

Once a class becomes a move-aware class one should realize that its destructor will still do its job as implemented. Consequently, when moving pointer values from a temporary source to a destination the move constructor should make sure that the temporary's pointer value is set to zero, to prevent doubly freeing memory.

If a class defines pointers to pointer data members there will usually not only be a pointer that is moved, but also a size_t defining the number of elements in the array of pointers.

Once again, consider the class Strings. Its destructor is implemented like this:

    Strings::~Strings()
    {
        for (string **end = d_string + d_size; end-- != d_string; )
            delete *end;
        delete[] d_string;
    }

The move constructor (and other move operations!) must realize that the distructor not only deletes d_string, but also considers d_size. A member implementing move operations should therefore not only set d_string to zero but also d_size. The previously shown move constructor for Strings is therefore incorrect. Its improved implementation is:

    Strings::Strings(Strings const &&tmp)
    :
        d_memory(tmp.d_memory),
        d_size(tmp.d_size),
        d_capacity(tmp.d_capacity)
    {
        const_cast<Strings &>(tmp.d_memory) = 0;
        const_cast<Strings &>(tmp.d_size) = 0;
    }

If operations by the destructor all depend on d_string having a non-zero value then variations of the above approach are of course possible. The move operations merely could decide to set d_memory to 0, and then test whether d_memory == 0 in the destructor (and if so, end the destructor's actions), saving some d_size assignments.

8.6.5: Move-only classes (C++0x)

Classes may very well allow move semantics without offering copy semantics. Most stream classes belong to this category. Extending their definition with move semantics greatly enhances their usability. Once move semantics becomes available for such classes, so called factory functions (functions returning an object constructed by the function) can easily be implemented. E.g.,

    // assume char *filename
    ifstream inStream(openIstream(filename));

For this example to work an ifstream constructor must offer a move constructor. This way there will at any time be only one object referring to the open istream.

Once classes offer move semantics their objects can also safely be stored in standard containers. When such containers performs reallocation (e.g., when their sizes are enlarged) they will use the object's move constructors rather than their copy constructors. As move-only classes suppress copy semantics containers storing objects of move-only classes implement the correct behavior in that it is impossible to assign such containers to each other.

8.6.6: Defining move special member functions (C++0x, 4.6)

To do

8.6.7: Moving: implications for class design (C++0x)

Here are some general rules to apply when designing classes offering value semantics (i.e., classes whose objects can be used to initialize other objectes of their class and that can be asssigned to other objects of their class):

Classes using pointers to dynamically allocated memory, owned by the class's objects must be provided with a copy constructor, an overloaded copy assignment operator and a destructor;
Classes using pointers to dynamically allocated memory, owned by the class's objects should be provided with a move constructor and a move assignment operator;
Classes using composition may benefit from move constructors and move assignment operators as well. Some classes support neither move nor copy construction and assignment (for example: stream classes don't). If your class contains data members of such class types then defining move operations is pointless.
In general: if your class supports functions expecting Class const & parameters a corresponding move-aware function expecting Class const && parameters should be considered.
The const keyword in Class const && parameters is their to allow the function to be called from arguments defining Class const return types. Such const-aware functions are commonly encountered when binary operators are overloaded (e.g., Class const operator+(Class const &lhs, Class const &rhs)). Since the returned value is a temporary value the function receiving the anonymous Class const object may modify it, ignoring its const-ness, when performing a move-operation.

8.7: Copy Elision and Return Value Optimization

When the compiler selects a member function (or constructor) it will do so according to a simple set of rules, matching arguments with parameter types.

Below two tables are provided. The first table should be used in cases where a function argument has a name, the second table should be used in cases where the argument is anonymous. In each table select the const or non-const column and then use the topmost overloaded function that is available having the specified parameter type.

The tables do not handle functions defining value parameters. If a function has overloads expecting, respectively, a value parameter and some form of reference parameter the compiler reports an ambiguity when such a function is called. In the following selection procedure we may assume, without loss of generality, that this ambiguity does not occur and that all parameter types are reference parameters.

Parameter types matching a function's argument of type T if the argument is:

a named argument (an lvalue or a named rvalue)

non-const const

(T &)

(T const &) (T const &)

Example: for an int x argument a function fun(int &) is selected rather than a function fun(int const &). If no fun(int &) is available the fun(int const &) function is used. If neither is available the compiler reports an error.

an anonymous argument (an anonymous temporary or a literal value)


non-const	const

(T &&)
(T const &&)	(T const &&)
(T const &)	(T const &)

Example: for an int arg() argument a function fun(int &&) is selected rather than a function fun(int const &&). If both functions are unavailable but a fun(int const &) is available, that function is used. If none of these functions is available the compiler reports an error.

The tables show that eventually all arguments can be used with a function specifying a T const & parameter. For anonymous arguments a similar catch all is available having a higher priority: T const && matches all anonymous arguments. Thus, if named and anonymous arguments are to be distinguished a T const && overloaded function will catch all temporaries.

As we've seen the move constructor grabs the information from a temporary for its own use. That is OK as the temporary is going to be destroyed after that anyway. It also means that the temporary's data members are modified. This modification can safely be considered a non-mutating operation on the temporary. It may thus be modified even if it was passed to a function specifying a T const && parameter. In cases like these consider using a const_cast to cast away the const-ness of the rvalue reference. The Strings move constructor encountered before might therefore also have been implemented as follows, handling both Strings and Strings const anonymous temporaries:

    Strings::Strings(Strings const &&tmp)
    :
        d_string(tmp.d_string),
        d_size(tmp.d_size)
    {
        const_cast<Strings &>(tmp).d_string = 0;
    }

Having defined appropriate copy and/or move constructors it may be somewhat surprising to learn that the compiler may decide to stay clear of a copy or move operation. After all making no copy and not moving is more efficient than copying or moving.

The option the compiler has to avoid making copies (or perform move operations) is called copy elision or return value optimization. In all situations where copy or move constructions are appropriate the compiler may apply copy elision. Here are the rules. In sequence the compiler considers the following options, stopping once an option can be selected:

if a copy or move constructor exists, try copy elision
if a move constructor exists, move.
if a copy constructor exists, copy.
report an error

All modern compilers apply copy elision. Here are some examples where it may be encountered:

    class Elide;

    Elide fun()         // 1
    {
        Elide ret;
        return ret;
    }

    void gun(Elide par);

    Elide elide(fun()); // 2

    gun(fun());         // 3

At 1 ret may never exist. Instead of using ret and copying ret eventually to fun's return value it may directly use the area used to contain fun's return value.
At 2 fun's return value may never exist. Instead of defining an area containing fun's return value and copying that return value to elide the compiler may decide to use elide to create fun's return value in.
At 3 the compiler may decide to do the same for gun's par parameter: fun's return value is directly created in par's area, thus eliding the copy operation from fun's return value to par.

8.8: Plain Old Data (C++0x)

C++ inherited the struct concept from C and extended it with the class concept. Structs are still used in C++, mainly to store and pass around aggregates of different data types. A commonly term for these structs is plain old data ( pod). Plain old data is commonly used in C++ programs to aggregate data. E.g., when a function needs to return a

double,
bool

and std::string these three different data types may be aggregated using a struct that merely exists to pass along values. Data protection and functionality is hardly ever an issue. For such cases C and C++ use structs. But as a C++ struct is just a class with special access rights some members (constructors, destructor, overloaded assignment operator) may implicitly be defined. The plain old data capitalizes on this concept by requiring that its definition remains as simple as possible. Specifically the C++0x standard considers pod to be a class or struct having the following characteristics:

it has a trivial default constructor.
If a type has some trivial member then the type (or its base class(es), cf. chapter 13) does not explicitly define that member. Rather, it is supplied by the compiler. A trivial default constructor leaves all its non-class data members unitialized and will call the default constructors of all its class data members. A class having a trivial default constructor does not define any constructor at all (nor does/do its base class/classes). It may also define the default constructor using the default constructor syntax introduced in section 7.4;
it has a trivial copy constructor.
A trivial copy constructor byte-wise copies the non-class data members from the provided existing class object and uses copy constructors to initialize its base class(es) and class data members with the information found in the provided existing class object;
it has a trivial overloaded assignment operator.
A trivial assignment operator performs a byte-wise copy of the non-class data members of the provided right-hand class object and uses overloaded assignment operators to assign new values to its class data members using the corresponding members of the provided right-hand class object;
it has a trivial destructor.
A trivial destructor calls the destructors of its base class(es) and class-type data members;
it has a standard layout.

A standard-layout class or struct

has only non-static data members that are themselves showing the standard-layout;
has identical access control (public, private, protected) for all its non-static members;

Furthermore, in the context of class derivation (cf. chapters 14 and 13), a standard-layout class or struct:

has only base classes that themselves show the standard-layout;
has at most one (in)direct base class having non-static members;
has no base classes of the same type as its first non-static data member;
has no virtual base classes;
has no virtual members.

8.9: Conclusion

Four important extensions to classes were introduced in this chapter: the destructor, the copy constructor, the move constructor and the overloaded assignment operator. In addition the importance of swapping, especially in combination with the overloaded assignment operator, was stressed.

Classes having pointer data members, pointing to dynamically allocated memory controlled by the objects of those classes, are potential sources of memory leaks. The extensions introduced in this chapter implement the standard defense against such memory leaks.

Encapsulation (data hiding) allows us to ensure that the object's data integrity is maintained. The automatic activation of constructors and destructors greatly enhance our capabilities to ensure the data integrity of objects doing dynamic memory allocation.

A simple conclusion is therefore that classes whose objects allocate memory controlled by themselves must at least implement a destructor, an overloaded assignment operator and a copy constructor. Implementing a move constructor remains optional, but it allows us to use factory functions with classes not allowing copy construction and/or assignment.

In the end, assuming the availability of at least a copy or move constructor, the compiler might avoid them using copy elision. The compiler is free to use copy elision wherever possible; it is, however, never a requirement. The compiler may therefore always decide not to use copy elision. In all situations where otherwise a copy or move constructor would have been used the compiler may consider to use copy elision.
