As we have seen in the previous chapter, C++ provides the tools to derive classes from one base type, to use base class pointers to address derived objects, and subsequently to process derived objects in a generic class.
Concerning the allowed operations on all objects in such a generic class we
have seen that the base class must define the actions to be performed on all
derived objects. In the example of the Vehicle this was the functionality
to store and retrieve the weight of a vehicle.
When using a base class pointer to address an object of a derived class, the
pointer type (i.e., the base class type) normally determines which function
will actually be called. This means that the code example from section
15.7 using the storage class VStorage, will incorrectly
compute the combined weight when a Truck object (see section 15.4)
is in the storage: only one weight field of the engine part of the truck is
taken into consideration. The reason for this is obvious: a Vehicle *vp
calls the function Vehicle::getweight() and not Truck::getweight(),
even when that pointer actually points to a Truck.
However, a remedy is available. In C++ it is possible for a
Vehicle *vp to call a function Truck::getweight() when the pointer
actually points to a Truck.
The terminology for this feature is polymorphism:
it is as though the pointer vp assumes the type of the object it points
to, rather than keeping it own (base class) type.
So, vp might behave
like a Truck * when pointing to a Truck, or like an Auto * when
pointing to an Auto etc.. (In one of the StarTrek movies, Cap.
Kirk was in trouble, as usual. He met an extremely beautiful lady who however
thereupon changed into a hideous troll. Kirk was quite surprised, but the lady
told him: ``Didn't you know I am a polymorph?'')
A second term for this characteristic is late binding. This name refers to the fact that the decision which function to call (a base class function or a function of a derived class) cannot be made compile-time, but is postponed until the program is actually executed: the right function is selected run-time.
Vehicle* will activate Vehicle's member functions, even when
pointing to an object of a derived class. This is referred to as early or
static binding, since the type of function is known compile-time. The
late or dynamic binding is achieved in C++ with
virtual functions.
A function becomes virtual when its declaration starts with the keyword
virtual. Once a function is declared virtual in a base class, its
definition remains virtual in all derived classes; even when the keyword
virtual is not repeated in the definition of the derived classes.
As far as the vehicle classification system is concerned (see section
15.1 ff.) the two member functions getweight() and
setweight() might be declared as virtual. The class definitions
below illustrate the classes Vehicle (which is the overall base class of
the classification system) and Truck, which has Vehicle as an
indirect base class. The functions getweight() of the two classes are
also shown:
class Vehicle
{
public:
Vehicle(); // constructors
Vehicle(int wt);
// interface.. now virtuals!
virtual int getweight() const;
virtual void setweight(int wt);
private:
int // data
weight;
}
// Vehicle's own getweight() function:
int Vehicle::getweight() const
{
return (weight);
}
class Land: public Vehicle
{
...
}
class Auto: public Land
{
...
}
class Truck: public Auto
{
public:
Truck(); // constructors
Truck(int engine_wt, int sp, char const *nm,
int trailer_wt);
// interface: to set two weight fields
void setweight(int engine_wt, int trailer_wt);
// and to return combined weight
int getweight() const;
private:
int // data
trailer_weight;
};
// Truck's own getweight() function
int Truck::getweight() const
{
return (Auto::getweight() + trailer_wt);
}
Note that the keyword virtual appears only in the definition of the base
class Vehicle; it need not be repeated in the derived classes (though a
repetition would be no error).
The effect of the late binding is illustrated in the next fragment:
Vehicle
v(1200); // vehicle with weight 1200
Truck
t(6000, 115, // truck with cabin weight 6000, speed 115,
"Scania", // make Scania, trailer weight 15000
15000);
Vehicle
*vp; // generic vehicle pointer
int main()
{
// see below (1)
vp = &v;
printf("%d\n", vp->getweight());
// see below (2)
vp = &t;
printf("%d\n", vp->getweight());
// see below (3)
printf("%d\n", vp->getspeed());
return (0);
}
Since the function getweight() is defined as virtual, late binding is
used here: in the statements above, just below the (1) mark, Vehicle's
function getweight() is called. In contrast, the statements below (2)
use Truck's function getweight().
Statement (3) however will produces a syntax error. A function
getspeed() is no member of Vehicle, and hence also not callable via
a Vehicle*.
The rule is that when using a pointer to a class,
only the functions which are members of that class can be called.
These functions can be virtual,
but this only affects the type of binding (early vs. late).
virtual in a base class (and hence in all
derived classes), and when these functions are called using a pointer to the
base class, the pointer as it were can assume more forms: it is polymorph. In
this section we illustrate the effect of polymorphism on the manner in which
programs in C++ can be developed.
A vehicle classification system in C might be implemented with
Vehicle being a union of structs, and having an enumeration field to
determine which actual type of vehicle is represented. A function
getweight() would typically first determine what type of vehicle is
represented, and then inspect the relevant fields:
enum Vtype // type of the vehicle
{
is_vehicle,
is_land,
is_auto,
is_truck,
}
struct Vehicle // generic vehicle type
{
int weight;
}
struct Land // land vehicle: adds speed
{
Vehicle v;
int speed;
}
struct Auto // auto: Land vehicle + name
{
Land l;
char *name;
}
struct Truck // truck: Auto + trailer
{
Auto a;
int trailer_wt;
}
union AnyVehicle // all sorts of vehicles in 1 union
{
Vehicle v;
Land l;
Auto a;
Truck t;
}
struct Object // the data for all vehicles
{
Vtype type;
AnyVehicle thing;
}
int getweight(Object *o) // how to get weight of a vehicle
{
switch (o->type)
{
case is_vehicle:
return (o->thing.v.weight);
case is_land:
return (o->thing.l.v.weight);
case is_auto:
return (o->thing.a.l.v.weight);
case is_truck:
return (o->thing.t.a.l.v.weight +
o->thing.t.trailer_wt);
}
}
A disadvantage of this approach is that the implementation cannot be
easily changed. E.g., if we wanted to define a type Airplane, which would,
e.g., add the functionality to store the number of passengers, then we'd have
to re-edit and re-compile the above code.
In contrast, C++ offers the possiblity of polymorphism. The advantage
is that `old' code remains usable. The implementation of an extra class
Airplane would in C++ mean one extra class, possibly with its own
(virtual) functions getweight() and setweight(). A function like:
void printweight(Vehicle const *any)
{
printf("Weight: %d\n", any->getweight());
}
would still work; the function wouldn't even need to be recompiled, since
late binding is in effect.
The fundamental idea of polymorphism is that the C++ compiler does not
know which function to call at compile-time; the appropriate function
will be selected run-time. That means that the address of
the function must be stored
somewhere, to be looked up prior to the actual call. This `somewhere' place
must be accessible from the object in question. E.g., when a Vehicle *vp
points to a Truck object, then vp->getweight() calls a member
function of Truck; the address of this function is determined from the
actual object which vp points to.
A common implementation is the following. An object containing virtual functions holds as its first data member a hidden field, pointing to an array of pointers holding the addresses of the virtual functions. It must be noted that this implementation is compiler-dependent, and is by no means dictated by the C++ ANSI definition.
The table of addresses of virtual functions is shared by all objects of the class. It even may be the case that two classes share the same table. The overhead in terms of memory consumption is therefore:
Consequently, a statement like vp->getweight() first inspects the hidden
data
member of the object pointed to by vp. In the case of the vehicle
classification system, this data member points to a table of two addresses:
one pointer for the function getweight() and one pointer for the function
setweight(). The actual function which is called is determined from this
table.

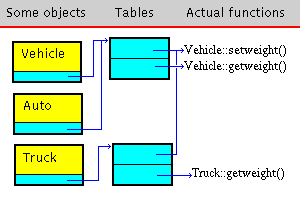

The internal organization of the objects having virtual functions is further illustrated in figure 13.
As can be seen from figure 13, all objects which
use virtual functions must have one (hidden) data member to address a table of
function pointers. The objects of the classes Vehicle and Auto both
address the same table. The class Truck, however, introduces its own
version of getweight(): therefore, this class needs its own table of
function pointers.
Vehicle contained its own, concrete,
implementations of the virtual functions getweight() and
setweight(). In C++ it is however also possible only to mention
virtual functions in a base class, and not define them. The functions are
concretely implemented in a derived class. This approach defines a
protocol, which has to be followed in the derived classes.
The special feature of only declaring functions in a base class, and not defining them, is that derived classes must take care of the actual definition: the C++ compiler will not allow the definition of an object of a class which doesn't concretely define the function in question. The base class thus enforces a protocol by declaring a function by its name, return value and arguments; but the derived classes must take care of the actual implementation. The base class itself is therefore only a model, to be used for the derivation of other classes. Such base classes are also called abstract classes.
The functions which are only declared but not defined in the base class are
called pure virtual functions. A function is made pure virtual by
preceding its declaration with the keyword virtual and by postfixing it
with = 0. An example of a pure virtual function occurs in the following
listing, where the definition of a class Sortable requires that all
subsequent classes have a function compare():
class Sortable
{
public:
virtual int compare(Sortable const &other) const = 0;
};
The function compare() must return an int and receives a reference
to a second Sortable object. Possibly its action would be to compare the
current object with the other one. The function is not allowed to alter
the other
object, as other is declared const. Furthermore, the function is not
allowed to alter the current object, as the function itself is declared
const.
The above base class can be used as a model for derived classes. As an example
consider the following class Person (a prototype of which was introduced
in chapter 6.1), capable of comparing two Person
objects by the alphabetical order of their names and addresses:
class Person: public Sortable
{
public:
// constructors, destructor, and stuff
Person();
Person(char const *nm, char const *add, char const *ph);
Person(Person const &other);
Person const &operator=(Person const &other);
~Person();
// interface
char const *getname() const;
char const *getaddress() const;
char const *getphone() const;
void setname(char const *nm);
void setaddress(char const *add);
void setphone(char const *ph);
// requirements enforced by Sortable
int compare(Sortable const &other) const;
private:
// data members
char *name, *address, *phone;
};
int Person::compare(Sortable const &o)
{
Person
const &other = (Person const &)o;
register int
cmp;
return
(
// first try: if names unequal, we're done
(cmp = strcmp(name, other.name)) ?
cmp
:
// second try: compare by addresses
strcmp(address, other.address)
);
}
Note in the implementation of Person::compare() that the argument of the
function is not a reference to a Person but a reference to a
Sortable. Remember that C++ allows function overloading: a function
compare(Person const &other) would be an entirely different function
from the one required by the protocol of Sortable. In the implementation
of the function we therefore cast the Sortable& argument to a
Person& argument.
other object is. E.g., the function
Person::compare() should make the comparison only if the
other object is a Person too: imagine what the expression
strcmp(name, other.name) would do when the other object were in fact not a Person and
hence did not have a char *name datamember.
We therefore present here an improved version of the protocol of the class
Sortable. This class is expanded to require that each derived class
implements a function int getsignature():
class Sortable
{
...
virtual int getsignature() const = 0;
...
};
The concrete function Person::compare() can now compare names and
addresses only if the signatures of the current and other object match:
int Person::compare(Sortable const &o)
{
register int
cmp;
// first, check signatures
if ((cmp = getsignature() - o.getsignature()))
return (cmp);
Person
const &other = (Person const &)o;
return
(
// next try: if names unequal, we're done
(cmp = strcmp(name, other.name)) ?
cmp
:
// last try: compare by addresses
strcmp(address, other.address)
);
}
The crux of the matter is of course the function getsignature(). This
function should return a unique int value for its particular class.
An elegant implementation is the following:
class Person: public Sortable
{
...
// getsignature() now required too
int getsignature() const;
}
int Person::getsignature() const
{
static int // Person's own tag, I'm quite sure
tag; // that no other class can access it
return ((int) &tag); // Hence, &tag is unique for Person
}
For the reader who's puzzled by our `elegant solution': the static int tag
defined in the Person::getsignature() function is just one variable, no
matter how many Person objects exist. Furthermore, it's created
compile-time as a global variable, since it's static. Hence, there's only one
variable tag for the Person class. Its address, therefore, is
uniquely connected to the Person class. This address is cast to an
int which thus becomes the (unique) signature of Person objects.
delete releases memory which is occupied by a
dynamically allocated object, a corresponding destructor is called to ensure
that internally used memory of the object can also be released. Now consider
the following code fragment, in which the two classes from the previous
sections are used:
Sortable
*sp;
Person
*pp = new Person("Frank", "frank@icce.rug.nl", "363 3688");
sp = pp; // sp now points to a Person
...
delete sp; // object destroyed
In this example an object of a derived class (Person) is destroyed using a
base class pointer (Sortable *). For a `standard' class definition this
will mean that the destructor of Sortable is called, instead of the
destructor of Person.
C++ however allows a destructor to be virtual. By preceding the
declaration of a destructor with the keyword virtual we can ensure that
the right destructor is activated even when called via a base class
pointer. The definition of the class Sortable would therefore become:
class Sortable
{
public:
virtual ~Sortable();
virtual int compare(Sortable const &other) const = 0;
...
};
Should the virtual destructor of the base class be a pure virtual
function or not? In general, the answer to this question would be no: for a
class such as Sortable the definition should not force derived
classes to define a destructor. In contrast, compare() is a pure virtual
function: in this case the base class defines a protocol which must be adhered
to.
By defining the destructor of the base class as virtual, but not as
purely so, the base class offers the possibility of redefinition of the
destructor in any derived classes. The base class doesn't enforce the choice.
The conclusion is therefore that the base class must define a destructor function, which is used in the case that derived classes do not define their own destructors. Such a destructor could be an empty function:
Sortable::~Sortable()
{
}
A slight difficulty in multiple inheritance may arise when more than one
`path' leads from the derived class to the base class. This is illustrated in
the code fragment below: a class Derived is doubly derived from a class
Base:
class Base
{
public:
void setfield(int val)
{ field = val; }
int getfield() const
{ return (field); }
private:
int field;
};
class Derived: public Base, public Base
{
};
Due to the double derivation, the functionality of Base now occurs twice
in Derived. This leads to ambiguity: when the function setfield() is
called for a Derived object, which function should that be, since
there are two? In such a duplicate derivation, many C++ compilers will fail to
generate code and (correctly) identify the error.
The above code clearly duplicates its base class in the derivation. Such a
duplication can be easily avoided here. But duplication of a base class can
also occur via nested inheritance, where an object is derived from, say, an
Auto and from an Air (see the vehicle classification system, chapter
15.1). Such a class would be needed to represent, e.g., a
flying car (such as the one in James Bond vs. the Man with the Golden
Gun...). An AirAuto would ultimately contain two Vehicles,
and hence two weight fields, two setweight() functions and two
getweight() functions.
AirAuto introduces ambiguity, when
derived from Auto and Air.
AirAuto is an Auto, hence a Land, and hence a
Vehicle.
AirAuto is also an Air, and hence a
Vehicle.
The duplication of Vehicle data is further illustrated in
figure 14.
The internal organization of an AirAuto is shown in
figure 15
AirAuto object.
The C++ compiler will detect the ambiguity in an AirAuto object, and
will therefore fail to produce code for a statement like:
AirAuto
cool;
printf("%d\n", cool.getweight());
The question of which member function getweight() should be called, cannot
be resolved by the compiler. The programmer has two possibilities to resolve
the ambiguity explicitly:
// let's hope that the weight is kept in the Auto
// part of the object..
printf("%d\n", cool.Auto::getweight());
Note the place of the scope operator and the class name: before the name of the member function itself.
getweight() could be created for
the class AirAuto:
int AirAuto::getweight() const
{
return(Auto::getweight());
}
The second possibility from the two above is preferable, since it relieves the
programmer who uses the class AirAuto of special precautions.
However, besides these explicit solutions, there is a more elegant one. This will be discussed in the next section.
Vehicle is present in one AirAuto. The
result is not only an ambiguity in the functions which access the weight
data, but also the presence of two weight fields. This is somewhat
redundant, since we can assume that an AirAuto has just one weight.
We can achieve that only one Vehicle will be contained in an AirAuto.
This is done by ensuring that the base class which is multiply present in a
derived class, is defined as a virtual base class. The behavior of
virtual base classes is the following: when a base class B is a virtual
base class of a derived class D, then B may be present in D but
this is not necessarily so. The compiler will leave out the inclusion of the
members of B when these are already present in D.
For the class AirAuto this means that the derivation of Land and
Air is changed:
class Land: virtual public Vehicle
{
...
};
class Air: virtual public Vehicle
{
...
};
The virtual derivation ensures that via the Land route, a Vehicle is
only added to a class when not yet present. The same holds true for the
Air route. This means that we can no longer say by which route a
Vehicle becomes a part of an AirAuto; we only can say that there is
one Vehicle object embedded.
The internal organization of an AirAuto after virtual derivation is
shown in figure 16.
AirAuto object when the base
classes are virtual.
With respect to virtual derivation we note:
Land or
Air with virtual derivation. That also would have the effect that
one
definition of a Vehicle in an AirAuto would be dropped.
Defining
both Land and Air as virtually derived is however by no means
erroneous.
Vehicle in an AirAuto is no longer
`embedded' in Auto or Air has a consequence for the chain of
construction. The constructor of an AirAuto will directly call the
constructor of a Vehicle; this constructor will not be called from
the constructors of Auto or Air.
Summarizing, virtual derivation has the consequence that ambiguity in the calling of member functions of a base class is avoided. Furthermore, duplication of data members is avoided.
AirAuto,
situations may arise where the double presence of the members of a base class
is appropriate. To illustrate this, consider the definition of a Truck
from section 15.4:
class Truck: public Auto
{
public:
// constructors
Truck();
Truck(int engine_wt, int sp, char const *nm,
int trailer_wt);
// interface: to set two weight fields
void setweight(int engine_wt, int trailer_wt);
// and to return combined weight
int getweight() const;
private:
// data
int trailer_weight;
};
// example of constructor
Truck::Truck(int engine_wt, int sp, char const *nm,
int trailer_wt)
:
Auto(engine_wt, sp, nm)
{
trailer_weight = trailer_wt;
}
// example of interface function
int Truck::getweight() const
{
return
( // sum of:
Auto::getweight() + // engine part plus
trailer_wt // the trailer
);
}
This definition shows how a Truck object is constructed to hold two
weight fields: one via its derivation from Auto and one via its own
int trailer_weight data member. Such a definition is of course valid, but
could be rewritten. We could let a Truck be derived from an Auto
and from a Vehicle, thereby explicitly requesting the double
presence of a Vehicle; one for the weight of the engine and cabin, and
one for the weight of the trailer.
A small item of interest here is that a derivation like
class Truck: public Auto, public Vehicle
is not accepted by the C++ compiler: a Vehicle is already part of an
Auto, and is therefore not needed. An intermediate class resolves the
problem: we derive a class TrailerVeh from Vehicle, and Truck
from Auto and from TrailerVeh. All ambiguities concerning the
member functions are then be resolved in the class Truck:
class TrailerVeh: public Vehicle
{
public:
TrailerVeh(int wt);
};
TrailerVeh::TrailerVeh(int wt)
:
Vehicle(wt)
{
}
class Truck: public Auto, public TrailerVeh
{
public:
// constructors
Truck();
Truck(int engine_wt, int sp, char const *nm,
int trailer_wt);
// interface: to set two weight fields
void setweight(int engine_wt, int trailer_wt);
// and to return combined weight
int getweight() const;
};
// example of constructor
Truck::Truck(int engine_wt, int sp, char const *nm,
int trailer_wt)
:
Auto(engine_wt, sp, nm),
TrailerVeh(trailer_wt)
{
}
// example of interface function
int Truck::getweight() const
{
return
( // sum of:
Auto::getweight() + // engine part plus
TrailerVeh::getweight() // the trailer
);
}
typeid operators.
dynamic_cast operator can be used to convert a pointer or
reference to a base class to a pointer or reference to a derived class.
typeid operator returns the actual type of an expression.
dynamic_cast operator is used to convert a (base) class pointer or
reference to a (base) class object to, respectively, a derived class pointer
or derived class reference.
The dynamic cast is performed run-time. A prerequisiste for the proper functioning of the dynamic cast operator is the existence of at least one virtual function in the base class.
In the following example a pointer to the class Derived is obtained from
the Base class pointer bp:
class Base
{
public:
virtual ~Base();
};
class Derived: public Base
{
public:
char const *toString()
{
return ("Derived object");
}
};
int main()
{
Base
*bp;
Derived
*dp,
d;
bp = &d;
if ((dp = dynamic_cast<Derived *>(bp)))
cout << dp->toString() << endl;
else
cout << "dynamic cast conversion failed\n";
return (0);
}
Note the test: in the if condition the success of the dynamic cast is
checked. This must be done run-time, as the compiler can't do this
itself. If a base class pointer is provided the dynamic cast operator returns
0 on failure, and a pointer to the requested derived class on
success. Consequently, if there are multiple derived classes, a series of
checks could be performed to find the actual derived class to which the
pointer points:
class Base
{
public:
virtual ~Base();
};
class Derived: public Base
{
public:
char const *toString()
{
return ("Derived object");
}
};
class SecondDerived: public Base
{
public:
char const *hello()
{
return ("hello from a SecondDerived object");
}
};
int main()
{
Base
*bp;
Derived
*dp,
d;
SecondDerived
*sdp;
bp = &d;
if ((dp = dynamic_cast<Derived *>(bp)))
cout << dp->toString() << endl;
else if ((sdp = dynamic_cast<SecondDerived *>(bp)))
cout << dp->hello() << endl;
}
Alternatively, a reference to a base class object may be available. In
this case the dynamic_cast<>() operator will throw an exception if it
fails. For example, assuming the availability of the abovementioned classes
Base, Derived, and SecondDerived:
void process(Base &b)
{
try
{
cout << dynamic_cast<Derived &>(b).toString() << endl;
return;
}
catch (std::bad_cast)
{}
try
{
cout << dynamic_cast<SecondDerived &>(b).hello() << endl;
return;
}
catch (std::bad_cast)
{}
}
int main()
{
Derived
d;
process(d);
return (0);
}
In this example the value std::bad_cast is introduced. The
std::bad_cast is thrown as an exception if the dynamic cast of a reference
to a base class object fails.
The dynamic cast operator may be a handy tool when an existing base class cannot or should not be modified (e.g., when the sources are not available), and a derived class may be modified instead. Code receiving a base class pointer or reference may then perform a dynamic cast to the derived class to be able to use the derived class' functionality.
Casts from a base class reference or pointer to a derived class reference or pointer are called downcasts.
dynamic_cast operator, the typeid is usually applied to
base class objects, that are actually derived class objects. Similarly, the
base class should contain one or more virtual functions.
In order to use the typeid operator, the header file typeinfo must be
included:
#include <typeinfo> typeid operator returns an object of type type_info,
which may, e.g., be compared to other type_info objects.
The class type_info may be implemented differently by different
implementations, but at the very least it has the following interface:
class type_info
{
public:
virtual ~type_info();
int operator==(const type_info &other) const;
int operator!=(const type_info &other) const;
char const *name() const;
private:
type_info(type_info const &other);
type_info &operator=(type_info const &other);
};
Note that this class has a private copy constructor and overloaded
assignment operator. This prevents the normal construction or assignment of a
type_info object. Type_info objects are constructed and returned by
the typeid operator. Implementations, however, may choose to extend or
elaborate upon the type_info class and provide, e.g., lists of functions
that can be called in a certain class.
If the type_id operator is given a base class reference (where the
base class contains at least one virtual function), it will indicate that the
type of its operand is the derived class. For example:
class Base; // contains >= 1 virtual functions
class Derived: public Base;
Derived
d;
Base
&br = d;
cout << typeid(br).name() << endl;
In this example the typeid operator is given a base class reference.
It will print the text Derived, being the class name of the class br
actually refers to. If Base does not contain virtual functions, the text
Base would have been printed.
The typeid operator can be used to determine the name of any type of
expression, not just of class type objects. For example:
cout << typeid(12).name() << endl; // prints: int
cout << typeid(12.23).name() << endl; // prints: double
Note, however, that the above example is suggestive at most of the type
that is printed. It may be int and double, but this is not
necessarily the case. If portability is required, make sure no tests against
static, built-in strings are required. Check out what your compiler produces
in case of doubt.
In situations where the typeid operator is applied to determine the
type of a derived class, it is important to realize that a base class
reference is used as the argument of the typeid operator. Consider the
following example:
class Base; // contains at least one virtual function
class Derived: public Base;
Base
*bp = new Derived; // base class pointer to derived object
if (typeid(bp) == typeid(Derived *)) // 1: false
...
if (typeid(bp) == typeid(Base *)) // 2: true
...
if (typeid(bp) == typeid(Derived)) // 3: false
...
if (typeid(bp) == typeid(Base)) // 4: false
...
Here, (1) returns false as a Base * is not a Derived
*. (2) returns true, as the two pointer types are the same, (3)
and (4) return false as pointers to objects are not the objects
themselves.
On the other hand, if *bp is used in the above expressions, then
(1) and (2) return false as an object (or reference to an object)
is not a pointer to an object, whereas with
if (typeid(*bp) == typeid(Derived)) // 3: true
...
if (typeid(*bp) == typeid(Base)) // 4: false
...
we see that (3) now returns true: *bp actually refers to a
Derived class object, and typeid(*bp) will return typeid(Derived).
A similar result is obtained if a base class reference is used:
Base
&br = *bp;
if (typeid(br) == typeid(Derived)) // 3: true
...
if (typeid(br) == typeid(Base)) // 4: false
...
